Three.js+TypeScript+Webpack学习记录（五）

使用环境参考

Node.js v16.19.1

正文

为模型做展示资料板

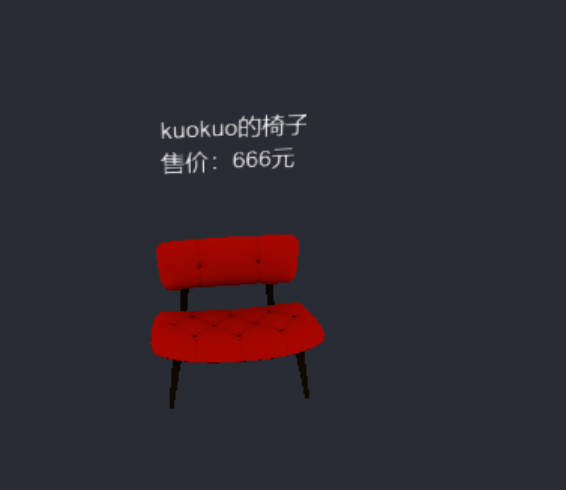

在 three.js 中是可以传入 canvas 渲染内容作为纹理进行展示的，这里举个简单的例子，用 canvas 绘制文字，然后贴在一个 box 模型上：

import * as THREE from 'three'
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls'
import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer'
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass'
import { OutlinePass } from 'three/examples/jsm/postprocessing/OutlinePass'
import { mergeBufferGeometries } from 'three/examples/jsm/utils/BufferGeometryUtils'
import { initCamera, initScene, initWebGLRenderer } from './init'
import { loadGLTF } from './load'
import { AnimationManager } from './animation'

class Game {
  scene: THREE.Scene
  camera: THREE.PerspectiveCamera
  renderer: THREE.WebGLRenderer
  orbitControls: OrbitControls

  raycaster = new THREE.Raycaster()
  mouse = new THREE.Vector2()

  animationManager = new AnimationManager()

  composer: EffectComposer
  outlinePass: OutlinePass

  constructor() {
    this.scene = initScene()
    this.camera = initCamera()
    this.scene.add(this.camera)
    this.renderer = initWebGLRenderer()

    this.orbitControls = this.addOrbitControls(this.camera, this.renderer)
    this.addModel()
    this.addCanvasModel()
    this.addResizeEventListener()
    this.addClickEvent()

    this.composer = new EffectComposer(this.renderer)
    const renderPass = new RenderPass(this.scene, this.camera)
    this.composer.addPass(renderPass)

    const outlinePass = new OutlinePass(
      new THREE.Vector2(window.innerWidth, window.innerHeight),
      this.scene,
      this.camera
    )
    outlinePass.edgeStrength = 4
    outlinePass.edgeGlow = 1
    outlinePass.edgeThickness = 1
    outlinePass.visibleEdgeColor.set('#ffffff')
    outlinePass.hiddenEdgeColor.set('#190a05')
    this.composer.addPass(outlinePass)

    this.outlinePass = outlinePass
  }

  addClickEvent() {
    this.renderer.domElement.addEventListener('pointermove', (ev) => {
      this.mouse.x = (ev.clientX / window.innerWidth) * 2 - 1
      this.mouse.y = -(ev.clientY / window.innerHeight) * 2 + 1
      this.raycaster.setFromCamera(this.mouse, this.camera)
      const intersects = this.raycaster.intersectObject(this.scene, true)
      if (intersects.length) {
        this.outlinePass.selectedObjects = [intersects[0].object]
      } else {
        this.outlinePass.selectedObjects = []
      }
    })
  }

  addOrbitControls(camera: THREE.Camera, renderer: THREE.WebGLRenderer) {
    const controls = new OrbitControls(camera, renderer.domElement)
    controls.autoRotate = true
    controls.enableDamping = true
    controls.update()
    return controls
  }

  addCanvasModel() {
    // 创建一个 canvas 元素，并在其中绘制内容
    const canvas = document.createElement('canvas')
    canvas.width = 256
    canvas.height = 256
    const context = canvas.getContext('2d')
    context.fillStyle = 'rgba(255, 255, 255, 0)' // 设置透明背景色
    context.fillRect(0, 0, canvas.width, canvas.height) // 绘制透明矩形
    context.font = '42px Arial'
    context.fillStyle = '#ffffff'
    context.fillText('kuokuo的椅子', 0, 100)
    context.fillText('售价：666元', 0, 160)
    // 将 canvas 元素创建为纹理，并应用到模型上
    const texture = new THREE.CanvasTexture(canvas)
    // 创建一个正方体模型
    const geometry = new THREE.BoxGeometry(0.65, 0.65, 0.001)
    const material = new THREE.MeshBasicMaterial({
      map: texture,
      transparent: true,
    })
    const cube = new THREE.Mesh(geometry, material)
    cube.position.set(0, 1.2, 0)
    this.scene.add(cube)
  }

  async addModel() {
    const model = await loadGLTF('gltf/SheenChair.glb')
    const geometryArray = []
    const materialArray = []
    model.traverse((obj) => {
      if (obj instanceof THREE.Mesh) {
        geometryArray.push(obj.geometry)
        materialArray.push(obj.material)
      }
    })
    const mergeGeo = mergeBufferGeometries(geometryArray, true)
    const group = new THREE.Mesh(mergeGeo, materialArray)
    this.scene.add(group)
  }

  addResizeEventListener() {
    window.addEventListener('resize', () => {
      this.camera.aspect = window.innerWidth / window.innerHeight
      this.camera.updateProjectionMatrix()
      this.renderer.setSize(window.innerWidth, window.innerHeight)
    })
  }

  startMainLoop() {
    // 等待一帧用于初始化
    Promise.resolve().then(() => {
      this.step()
    })
  }

  step() {
    requestAnimationFrame(this.step.bind(this))
    this.orbitControls && this.orbitControls.update()
    this.animationManager.step()
    // this.renderer.render(this.scene, this.camera)
    this.composer.render()
  }
}

const game = new Game()
game.startMainLoop()

做更炫酷的图表展示

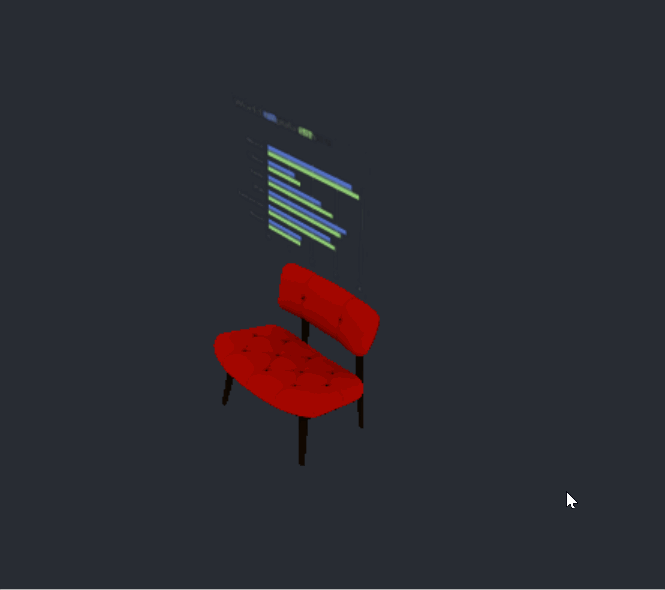

既然可以引入 canvas 作为渲染纹理，那要说图表展示，引入 Echarts 岂不是更爽！

安装 npm i echarts，然后是声明文件 npm i @types/echarts --save-dev

import * as THREE from 'three'
import * as echarts from 'echarts'
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls'
import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer'
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass'
import { OutlinePass } from 'three/examples/jsm/postprocessing/OutlinePass'
import { mergeBufferGeometries } from 'three/examples/jsm/utils/BufferGeometryUtils'
import { initCamera, initScene, initWebGLRenderer } from './init'
import { loadGLTF } from './load'
import { AnimationManager } from './animation'

class Game {
  scene: THREE.Scene
  camera: THREE.PerspectiveCamera
  renderer: THREE.WebGLRenderer
  orbitControls: OrbitControls

  raycaster = new THREE.Raycaster()
  mouse = new THREE.Vector2()

  animationManager = new AnimationManager()

  composer: EffectComposer
  outlinePass: OutlinePass

  updateTexture: THREE.Texture

  constructor() {
    this.scene = initScene()
    this.camera = initCamera()
    this.scene.add(this.camera)
    this.renderer = initWebGLRenderer()

    this.orbitControls = this.addOrbitControls(this.camera, this.renderer)
    this.addModel()
    this.addCanvasModel()
    this.addResizeEventListener()
    this.addClickEvent()

    this.composer = new EffectComposer(this.renderer)
    const renderPass = new RenderPass(this.scene, this.camera)
    this.composer.addPass(renderPass)

    const outlinePass = new OutlinePass(
      new THREE.Vector2(window.innerWidth, window.innerHeight),
      this.scene,
      this.camera
    )
    outlinePass.edgeStrength = 4
    outlinePass.edgeGlow = 1
    outlinePass.edgeThickness = 1
    outlinePass.visibleEdgeColor.set('#ffffff')
    outlinePass.hiddenEdgeColor.set('#190a05')
    this.composer.addPass(outlinePass)

    this.outlinePass = outlinePass
  }

  addClickEvent() {
    this.renderer.domElement.addEventListener('pointermove', (ev) => {
      this.mouse.x = (ev.clientX / window.innerWidth) * 2 - 1
      this.mouse.y = -(ev.clientY / window.innerHeight) * 2 + 1
      this.raycaster.setFromCamera(this.mouse, this.camera)
      const intersects = this.raycaster.intersectObject(this.scene, true)
      if (intersects.length) {
        this.outlinePass.selectedObjects = [intersects[0].object]
      } else {
        this.outlinePass.selectedObjects = []
      }
    })
  }

  addOrbitControls(camera: THREE.Camera, renderer: THREE.WebGLRenderer) {
    const controls = new OrbitControls(camera, renderer.domElement)
    controls.autoRotate = true
    controls.enableDamping = true
    controls.update()
    return controls
  }

  addCanvasModel() {
    // 创建一个 canvas 元素，并在其中绘制内容
    const canvas = document.createElement('canvas')
    canvas.width = 256
    canvas.height = 256

    const data = []
    for (let i = 0; i < 5; ++i) {
      data.push(Math.round(Math.random() * 200))
    }

    const dataArr1 = [1, 2, 3, 2, 1, 3]
    const dataArr2 = [2, 1, 1, 2, 1, 2]

    const chart = echarts.init(canvas)
    const option: echarts.EChartOption<{ name: string; type: string; data: number[] }> = {
      title: {
        text: 'World Population',
      },
      tooltip: {
        trigger: 'axis',
        axisPointer: {
          type: 'shadow',
        },
      },
      legend: {},
      grid: {
        left: '3%',
        right: '4%',
        bottom: '3%',
        containLabel: true,
      },
      xAxis: {
        type: 'value',
        boundaryGap: [0, 0.01],
      },
      yAxis: {
        type: 'category',
        data: ['Brazil', 'Indonesia', 'USA', 'India', 'China', 'World'],
      },
      series: [
        {
          name: '2011',
          type: 'bar',
          data: dataArr1,
        },
        {
          name: '2012',
          type: 'bar',
          data: dataArr2,
        },
      ],
    }
    chart.setOption(option)

    // 定时器变化
    setInterval(() => {
      // 随机加减
      const newArr1 = dataArr1.map((v) => v + Math.random())
      const newArr2 = dataArr1.map((v) => v + Math.random())
      option.series[0].data = newArr1
      option.series[1].data = newArr2
      chart.setOption(option)
    }, 600)

    // 将 canvas 元素创建为纹理，并应用到模型上
    const texture = new THREE.CanvasTexture(canvas)
    this.updateTexture = texture
    // 创建一个正方体模型
    const geometry = new THREE.BoxGeometry(1, 0.65, 0.001)
    const material = new THREE.MeshBasicMaterial({
      map: texture,
      transparent: true,
    })
    const cube = new THREE.Mesh(geometry, material)
    cube.position.set(0, 1.2, 0)
    this.scene.add(cube)
  }

  async addModel() {
    const model = await loadGLTF('gltf/SheenChair.glb')
    const geometryArray = []
    const materialArray = []
    model.traverse((obj) => {
      if (obj instanceof THREE.Mesh) {
        geometryArray.push(obj.geometry)
        materialArray.push(obj.material)
      }
    })
    const mergeGeo = mergeBufferGeometries(geometryArray, true)
    const group = new THREE.Mesh(mergeGeo, materialArray)
    this.scene.add(group)
  }

  addResizeEventListener() {
    window.addEventListener('resize', () => {
      this.camera.aspect = window.innerWidth / window.innerHeight
      this.camera.updateProjectionMatrix()
      this.renderer.setSize(window.innerWidth, window.innerHeight)
    })
  }

  startMainLoop() {
    // 等待一帧用于初始化
    Promise.resolve().then(() => {
      this.step()
    })
  }

  step() {
    requestAnimationFrame(this.step.bind(this))
    this.updateTexture && (this.updateTexture.needsUpdate = true)
    this.orbitControls && this.orbitControls.update()
    this.animationManager.step()
    // this.renderer.render(this.scene, this.camera)
    this.composer.render()
  }
}

const game = new Game()
game.startMainLoop()
