Three.js+TypeScript+Webpack学习记录（四）

使用环境参考

Node.js v16.19.1

正文

模型网格合并

接下来要实现一些后处理效果，比如外轮廓发光效果。我想让整体模型进行外发光，打开 blender 软件观察了一下模型的结构，由四个子块组成，这时可以通过软件进行合并，或者去 three 里面去合并。

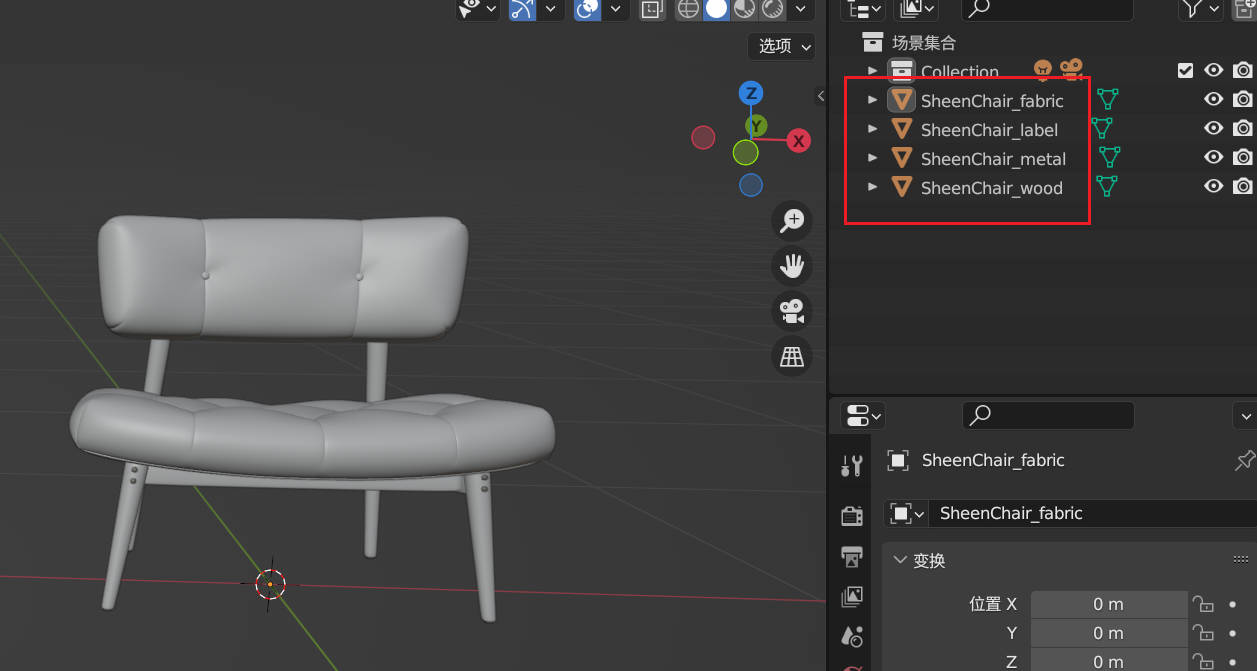

如下在 blender 里的层级显示，从灵活度考虑，不推荐在模型里合并，Pass。

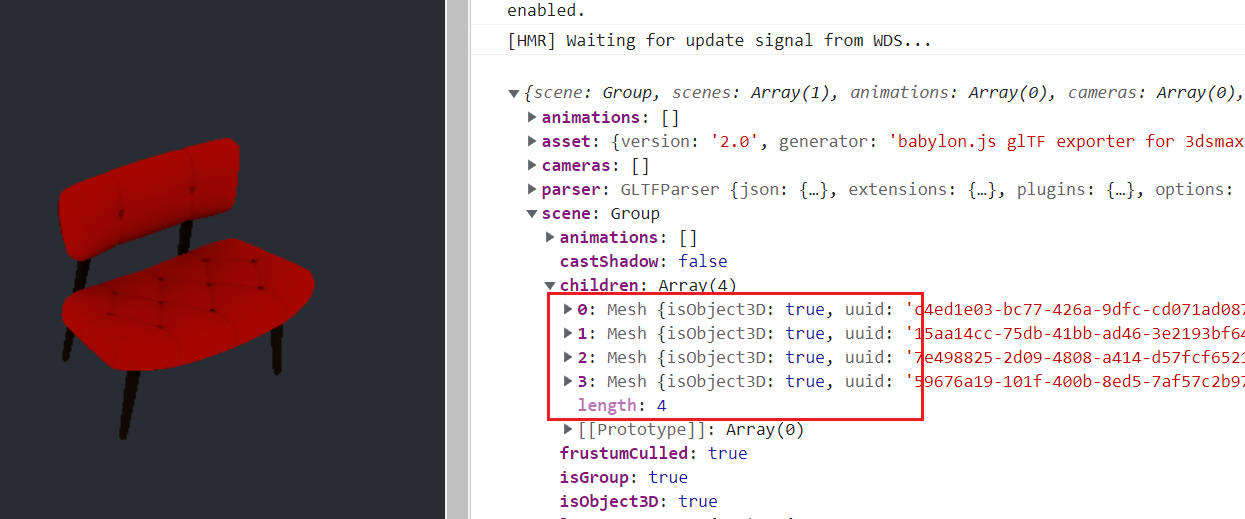

在 three 中加载完 glf 模型，观察其 children，就是四个子部分，利用代码合并它们。

import { mergeBufferGeometries } from 'three/examples/jsm/utils/BufferGeometryUtils'
// 、、、
async addModel() {
    const model = await loadGLTF('gltf/SheenChair.glb')
    const geometryArray = []
    const materialArray = []
    model.traverse(obj => {
        // traverse 会遍历所有，一些模型含有光源，空节点，做下过滤
        if (obj instanceof THREE.Mesh) {
            geometryArray.push(obj.geometry)
            materialArray.push(obj.material)
        }
    })
    const mergeGeo = mergeBufferGeometries(geometryArray, true)
    const group = new THREE.Mesh(mergeGeo, materialArray)
    this.scene.add(group)
}

描边后处理

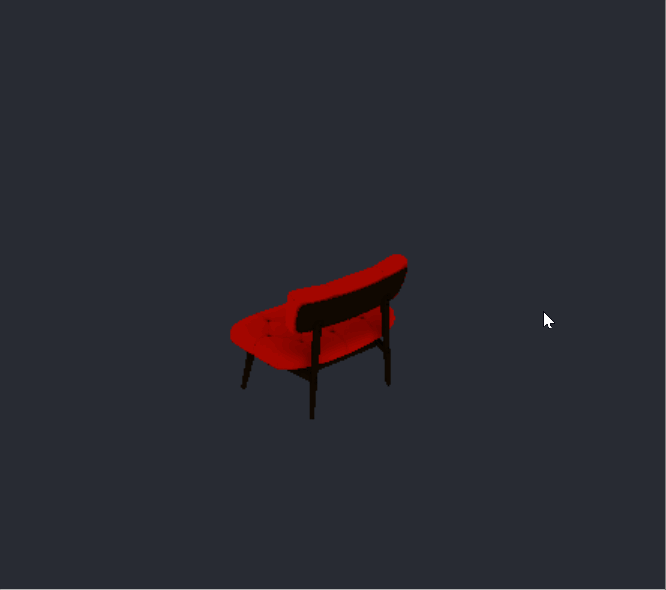

把 scene 的背景颜色搞暗一些，加入外发光后处理效果：

import * as THREE from 'three'
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls'
import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer'
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass'
import { OutlinePass } from 'three/examples/jsm/postprocessing/OutlinePass'
import { mergeBufferGeometries } from 'three/examples/jsm/utils/BufferGeometryUtils'
import { initCamera, initScene, initWebGLRenderer } from './init'
import { loadGLTF } from './load'
import { AnimationManager } from './animation'

class Game {
  scene: THREE.Scene
  camera: THREE.PerspectiveCamera
  renderer: THREE.WebGLRenderer
  orbitControls: OrbitControls

  raycaster = new THREE.Raycaster()
  mouse = new THREE.Vector2()

  animationManager = new AnimationManager()

  // 后处理
  composer: EffectComposer
  outlinePass: OutlinePass

  constructor() {
    this.scene = initScene()
    this.camera = initCamera()
    this.scene.add(this.camera)
    this.renderer = initWebGLRenderer()

    this.orbitControls = this.addOrbitControls(this.camera, this.renderer)
    this.addModel()
    this.addResizeEventListener()
    this.addClickEvent()

    this.composer = new EffectComposer(this.renderer)
    const renderPass = new RenderPass(this.scene, this.camera)
    this.composer.addPass(renderPass)

    const outlinePass = new OutlinePass(
      new THREE.Vector2(window.innerWidth, window.innerHeight),
      this.scene,
      this.camera
    )
    // 描边 pass 的各种参数
    outlinePass.edgeStrength = 4
    outlinePass.edgeGlow = 1
    outlinePass.edgeThickness = 1
    outlinePass.visibleEdgeColor.set('#ffffff')
    outlinePass.hiddenEdgeColor.set('#190a05')
    this.composer.addPass(outlinePass)

    this.outlinePass = outlinePass
  }

  addClickEvent() {
    this.renderer.domElement.addEventListener('pointermove', (ev) => {
      this.mouse.x = (ev.clientX / window.innerWidth) * 2 - 1
      this.mouse.y = -(ev.clientY / window.innerHeight) * 2 + 1
      this.raycaster.setFromCamera(this.mouse, this.camera)
      const intersects = this.raycaster.intersectObject(this.scene, true)
      if (intersects.length) {
        // 想多个模型发光就声明一个数组，往里 push 即可
        this.outlinePass.selectedObjects = [intersects[0].object]
      } else {
        this.outlinePass.selectedObjects = []
      }
    })
  }

  addOrbitControls(camera: THREE.Camera, renderer: THREE.WebGLRenderer) {
    const controls = new OrbitControls(camera, renderer.domElement)
    controls.autoRotate = true
    controls.enableDamping = true
    controls.update()
    return controls
  }

  async addModel() {
    const model = await loadGLTF('gltf/SheenChair.glb')
    const geometryArray = []
    const materialArray = []
    model.traverse((obj) => {
      if (obj instanceof THREE.Mesh) {
        geometryArray.push(obj.geometry)
        materialArray.push(obj.material)
      }
    })
    const mergeGeo = mergeBufferGeometries(geometryArray, true)
    const group = new THREE.Mesh(mergeGeo, materialArray)
    this.scene.add(group)
  }

  addResizeEventListener() {
    window.addEventListener('resize', () => {
      this.camera.aspect = window.innerWidth / window.innerHeight
      this.camera.updateProjectionMatrix()
      this.renderer.setSize(window.innerWidth, window.innerHeight)
    })
  }

  startMainLoop() {
    // 等待一帧用于初始化
    Promise.resolve().then(() => {
      this.step()
    })
  }

  step() {
    requestAnimationFrame(this.step.bind(this))
    this.orbitControls && this.orbitControls.update()
    this.animationManager.step()
    // 注意上面 this.composer 已经 addPass 了普通渲染流程，这里注释掉
    // this.renderer.render(this.scene, this.camera)
    this.composer.render()
  }
}

const game = new Game()
game.startMainLoop()
